Marlin

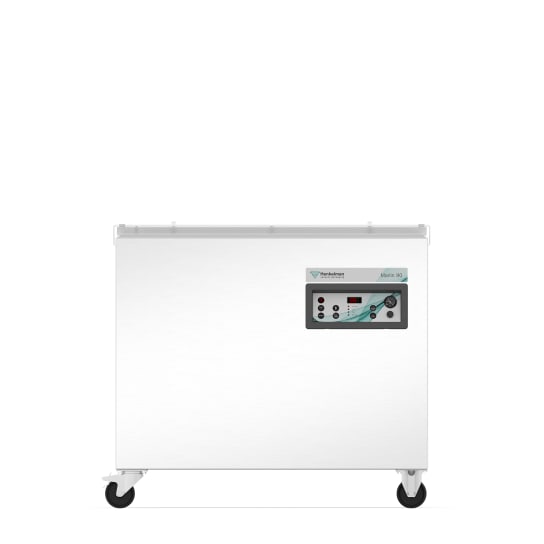

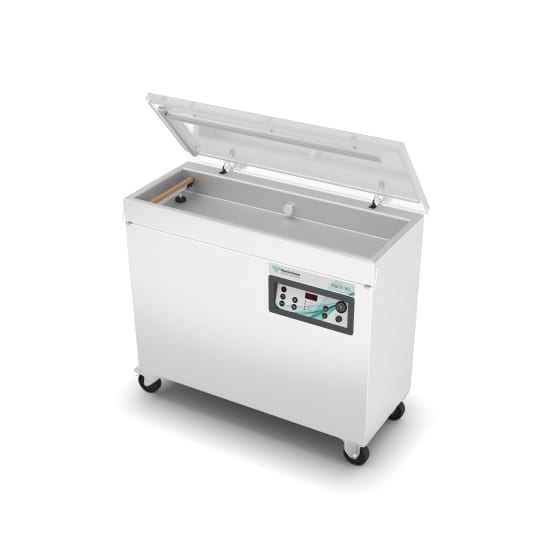

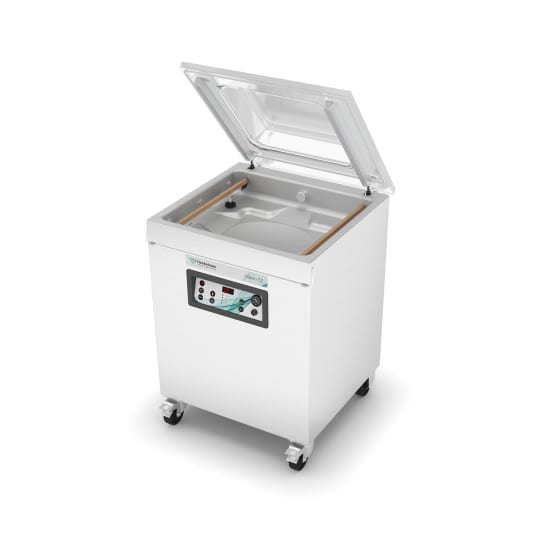

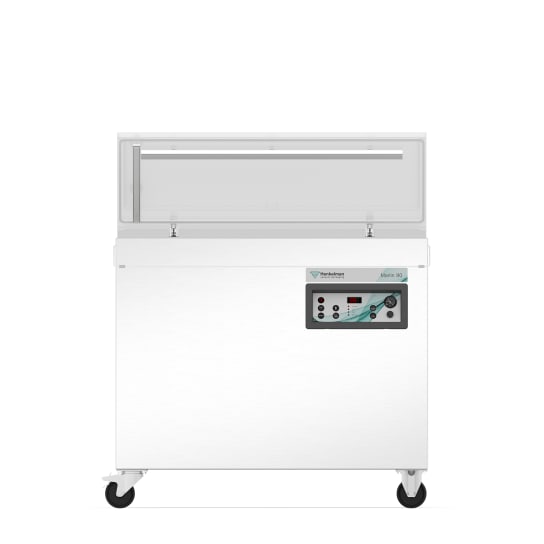

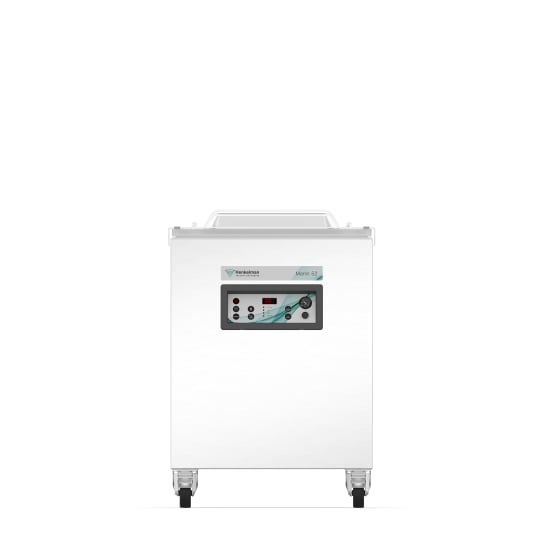

Floor-standing vacuum sealing machine in with transparent, plastic lid and a powerful pump . Equipped with a stainless steel chamber and two sealing bars left and right for packing voluminous and/or multiple products simultaneously.
- Our machines
-
-
In the Spotlight
-
-
- Support
-
- Contact Us
Marlin
Highlights

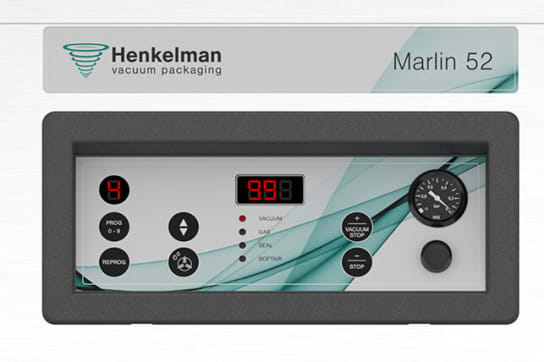

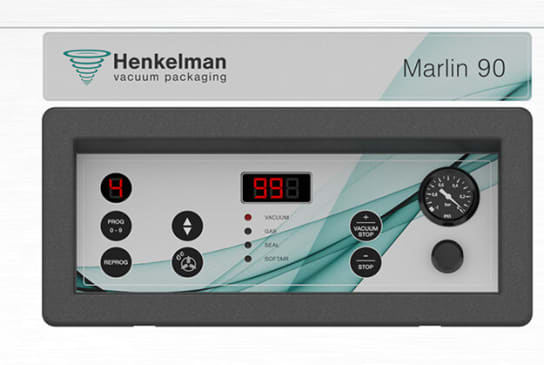

10 program memory
Offers the option to set and save up to 10 personalized vacuum programs.
Soft air
This enables the optimal vacuum packing of sharp or sensitive products without damaging the product or vacuum bag.
Time control
Manually sets the vacuuming time
Red meat function
Short injections of air prevent the degassing of meat during the sealing phase. This ensures a longer shelf life and prevents air bubbles in the packaging.
Automatic Service Report
Automatic maintenance notification when the specified number of cycles has been reached. Standard on all Henkelman machines.
Insert plates
Adjusts the product to the correct position in relation to the sealing bar for optimal packaging. This also reduces the volume of the chamber and speeds up the vacuuming process.
Large chamber
Whether you want to vacuum pack a large product such as a whole salmon, or multiple smaller products; the large chamber makes it all possible. The Marlin is therefore ideal for butcher shops and caterers who do a lot of portioning on a daily basis.
Full option machine
Based on individual needs, each Marlin model can be upgraded with one of the many optional extras, such as gas flushing (MAP) or Liquid Control. You can choose exactly what you need for the optimal packaging process to suit your workflow.

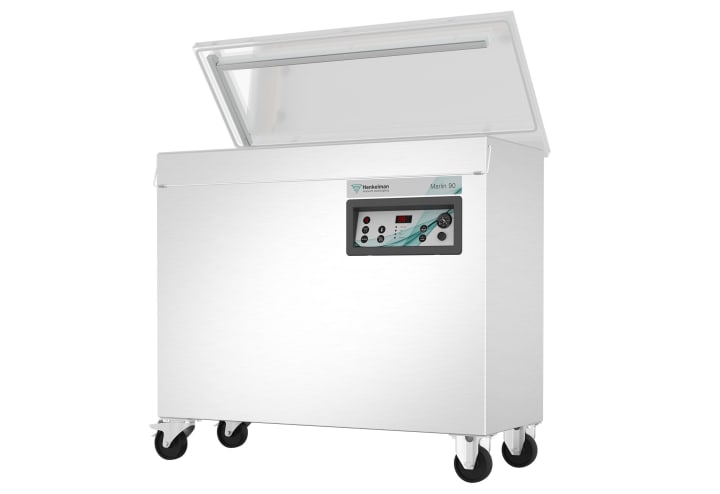

Better view of the process

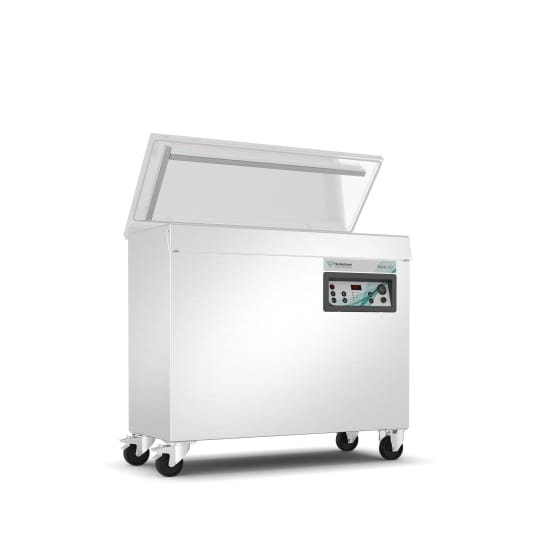

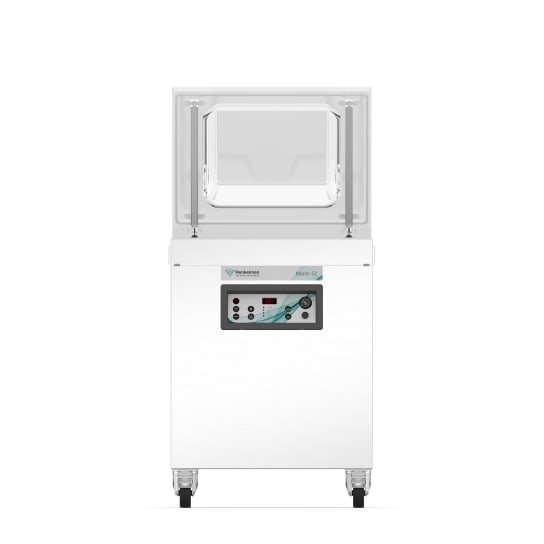

The Marlin has a transparent, plastic lid. This allows you to closely monitor the vacuuming process. Each and every cycle. This is useful when packaging (un)prepared food, for example in the catering or hospitality industries.
Extra options
Customize your Henkelman
Liquid Control
Stops the vacuuming process when evaporation is detected. This prevents contamination of the chamber, oxidation of the pump, and dehydration and loss of weight
Sensor control
Detects the vacuum pressure and automatically stops the process when the preset vacuum percentage is reached
Advanced Control System (ACS)
Advanced full color operating system with 20 pre-programmed or user-configurable programs and extra functions for optimal user-friendliness.

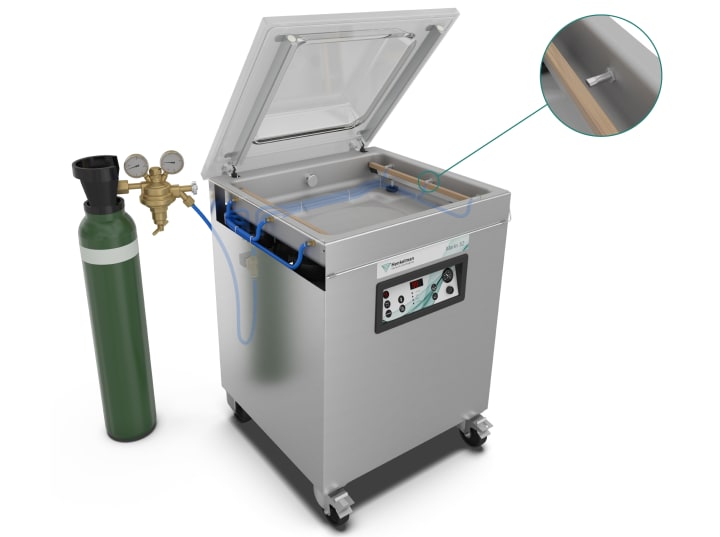

Gas Flush / MAP packaging
Extends the shelf-life and protects vulnerable products from distortion and discoloration through the addition of preservative gas
1-2 Cut-off seal
Enables an independent time setting of the sealing wire and the cutting wire.
Inclined insert plate
Positions the vacuum bag at an angle. This makes it easier and more efficient to vacuum pack fluids and powders.
Thermal label printer
Ultra-compact thermal printer (HACCP proof) for labeling products. Only in combination with the Advanced Control System.
Universal trolley (table model)
Stainless steel trolley with shelves and swiveling wheels with brakes. Provides mobility and storage space.
External adapter
Enables an optimal vacuum in external containers such as gastro-norm containers.
Maintenance kit (Floor-standing model)
Contains everything needed for a maintenance service for Henkelman floor-standing models
Specifications
 Marlin 52 |  Marlin 90 | |||
|---|---|---|---|---|
| Chamber dimensions (mm) | 520x500x200 | 320x890x100 | ||
| Machine dimensions (mm) | 710x700x1025 | 480x1066x970 | ||
| Seal bar (mm) | 590 | 1x310 1x920 | ||
| Pump capacity (m3/h) | 63 | 63 | ||
| Machine cycle (in sec) | 11-24 | 10-20 | ||
| Weight (kg) | 165 | 219 | ||
| Power (kWh) | 1,5-2,4 | 1,5-2,4 | ||
| Insert plates | 2 | 3 | ||
| Operating systems | 10 program memory, Advanced Control System | 10 program memory, Advanced Control System | ||
| End vacuum detection | Timedriven | Timedriven | ||
| Fresh meat detection | Default | Default | ||
| Soft air | Default | Default | ||
| Liquid control | Optional | Optional | ||
| Gas flush | Optional | Optional | ||
| ACS function: Step vaccuum | Standard | Standard | ||
| ACS function: Fresh meat | Standard | Standard | ||
| ACS function: Marinate | Standard | Standard | ||
| ACS function: Tenderize | Standard | Standard | ||
| ACS function: Mason jars | Standard | Standard | ||
Frequently asked questions
Why does the Marlin vacuum packing machine have a transparent lid?
Can a Marlin vacuum packing machine be connected to 230V power?
Which machine is best suited for vacuum packing fish?
