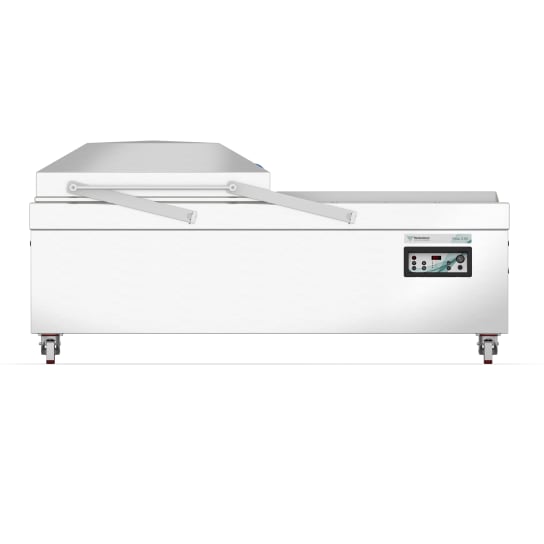

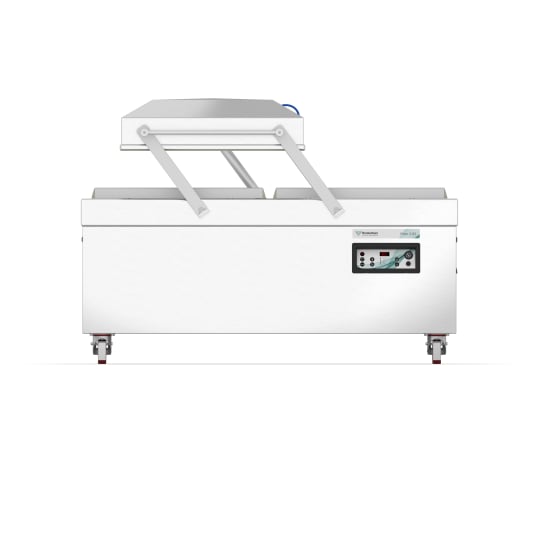

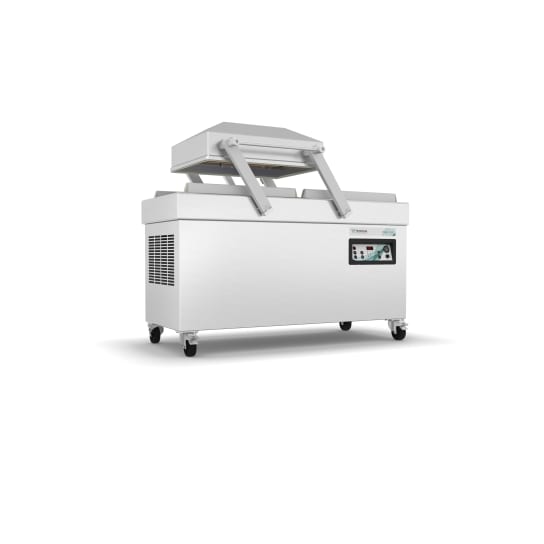

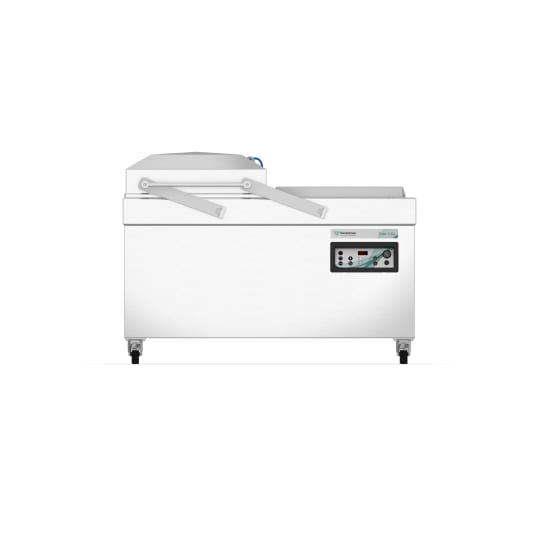

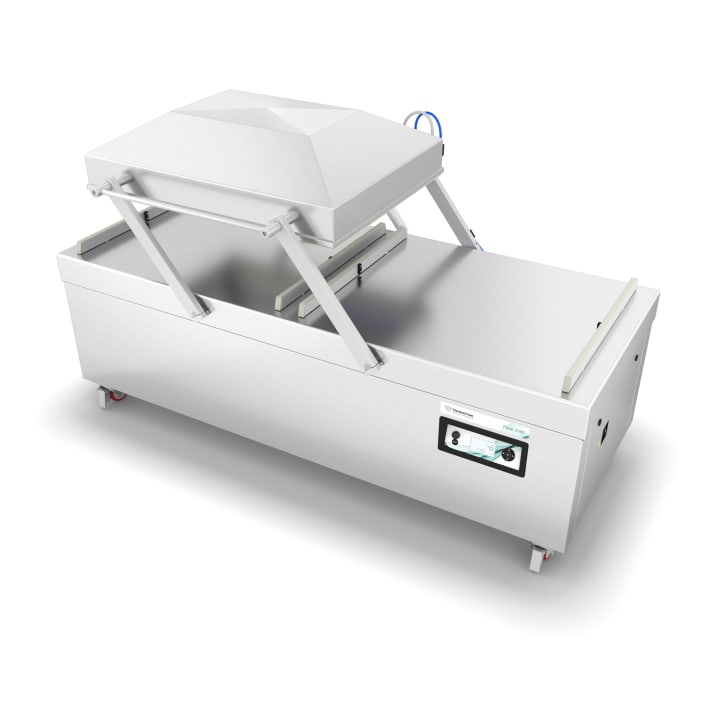

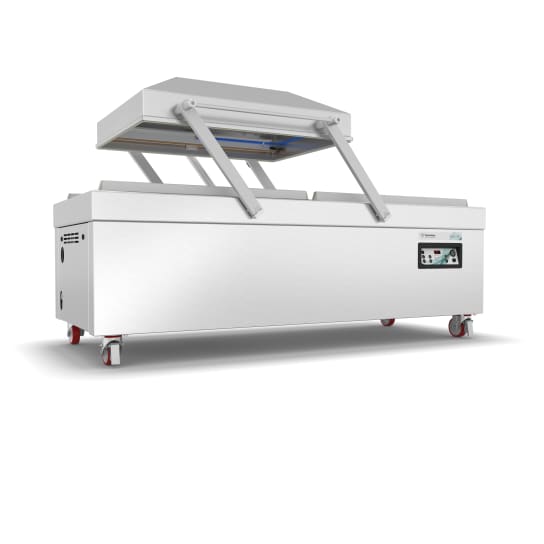

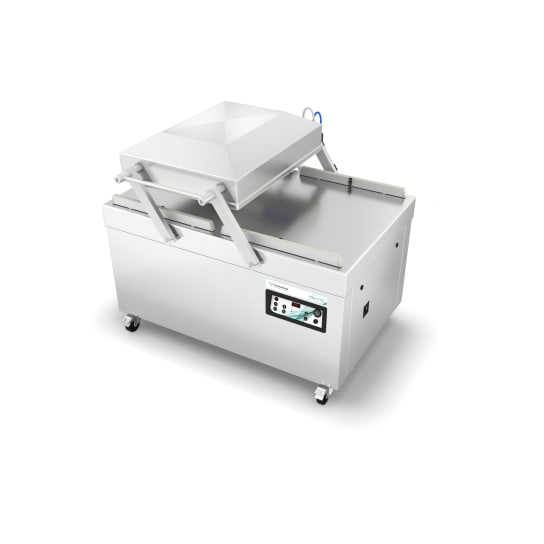

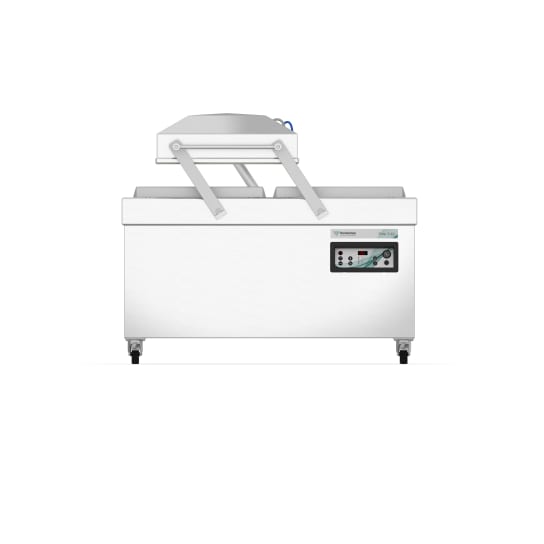

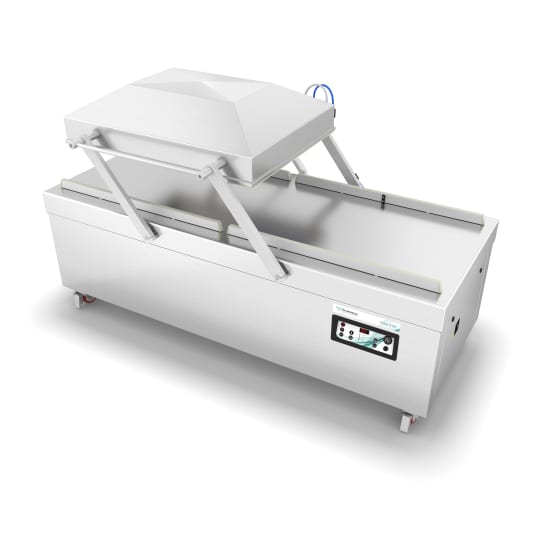

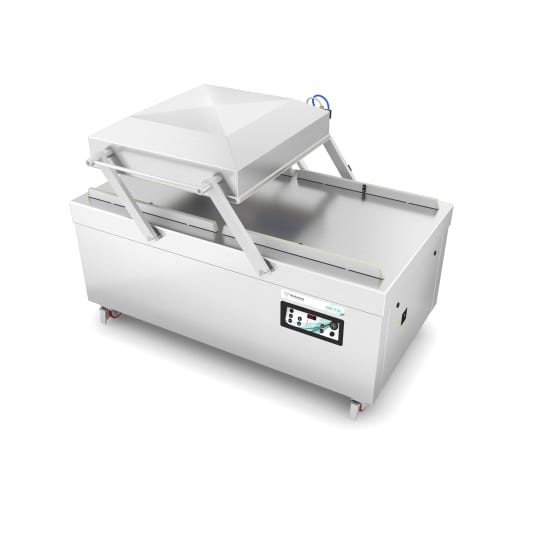

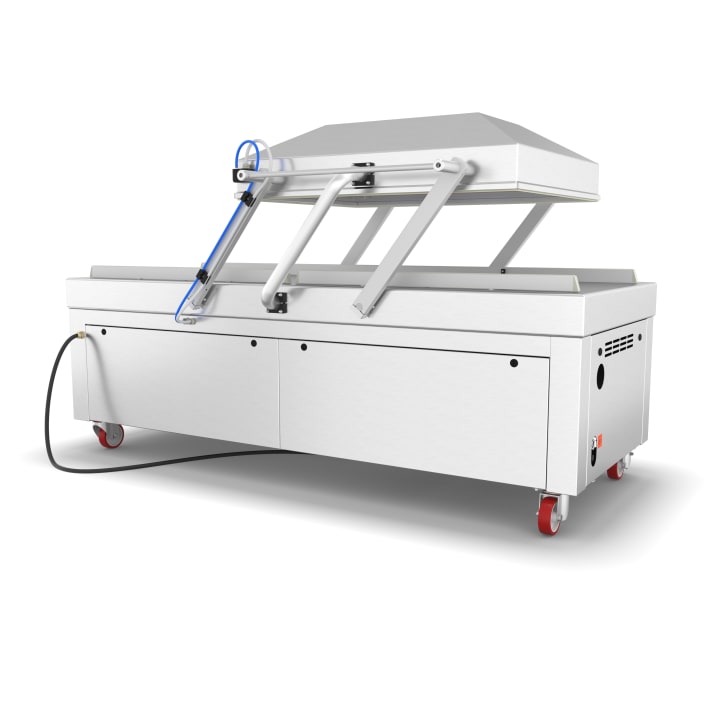

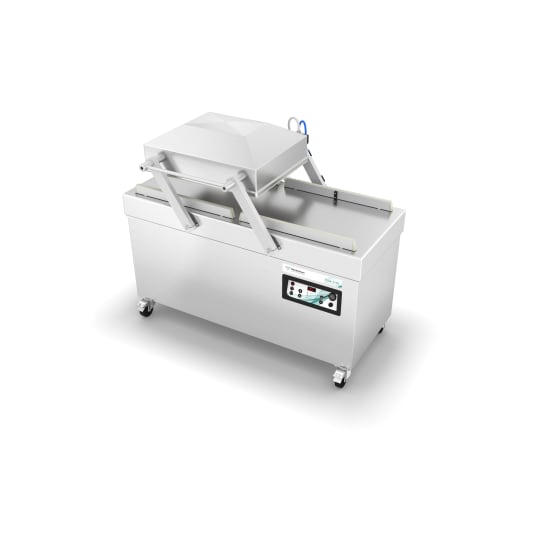

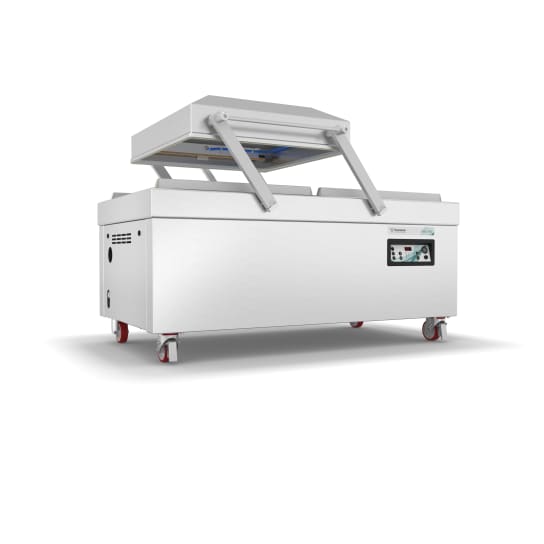

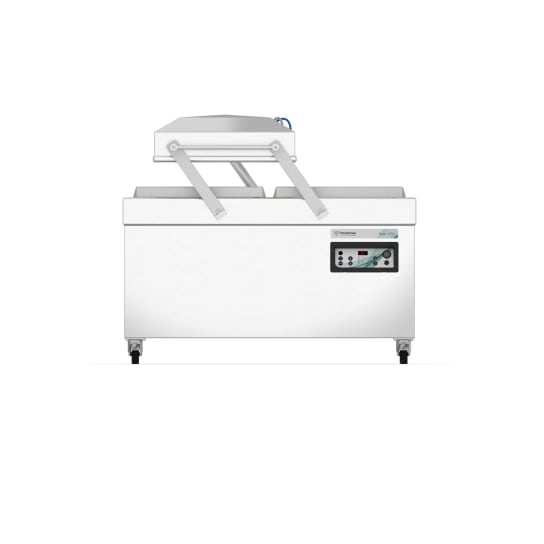

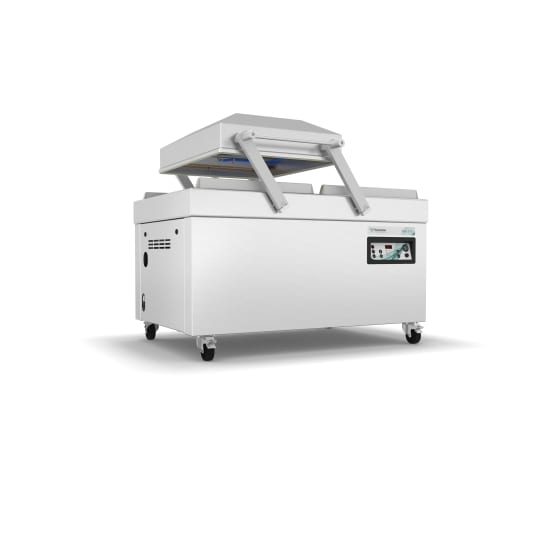

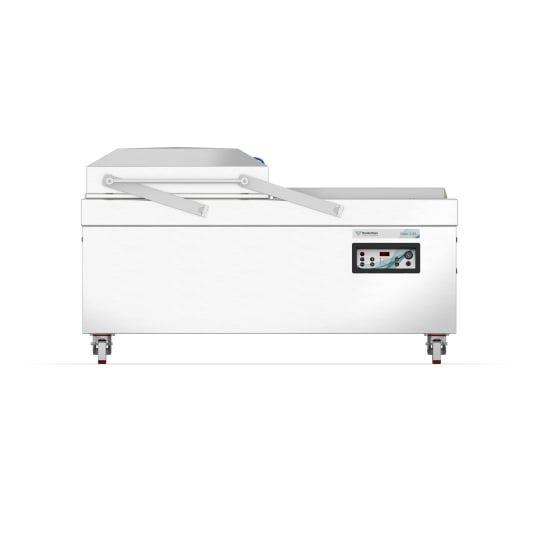

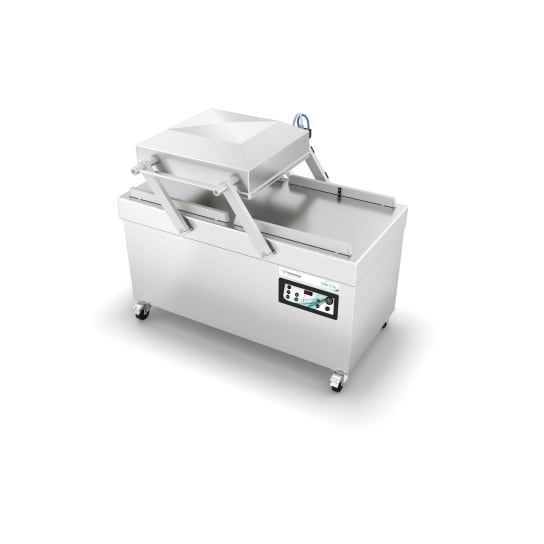

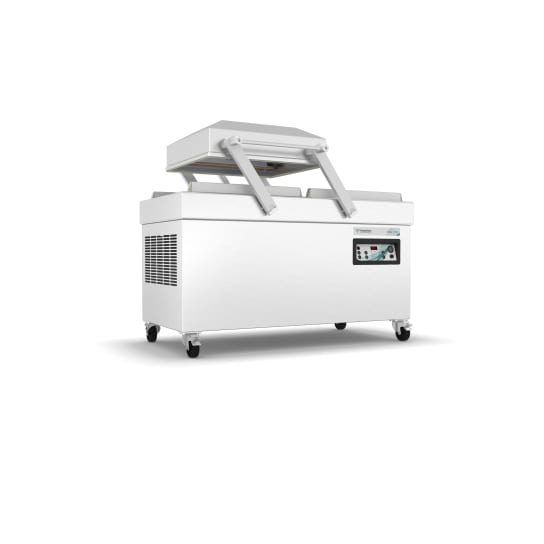

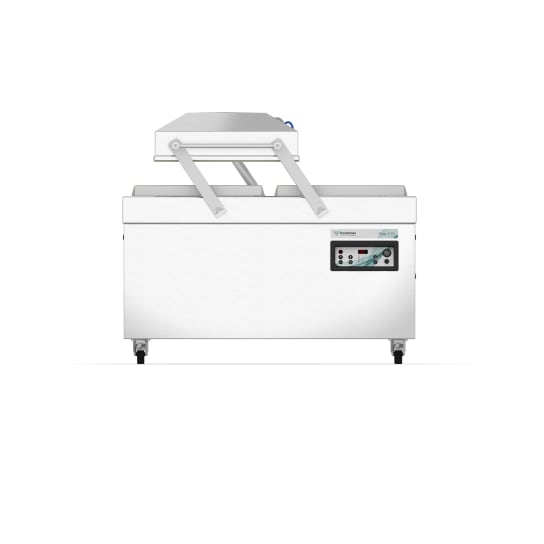

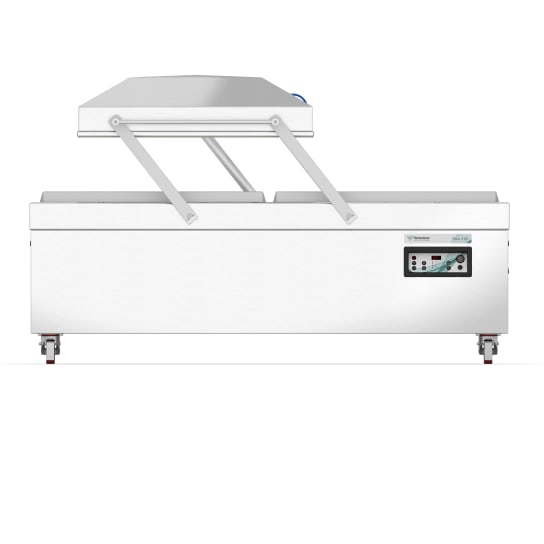

Polar Double Chamber
Industrial model made from stainless steel and with double chambers for minimal downtime in the packaging process. Available with different sized chambers. Delivered with 10 programs, flat work plates and soft air.
- Our machines
-
-
In the Spotlight
-
-
- Support
-
- Contact Us
Polar Double Chamber
Highlights
Double chamber
Minimizes downtime of the packing process in commercial settings, so that larger quantities of products can be packaged faster and more efficiently.
Flat work surface
Durable stainless steel material that can withstand long-term, industrial use

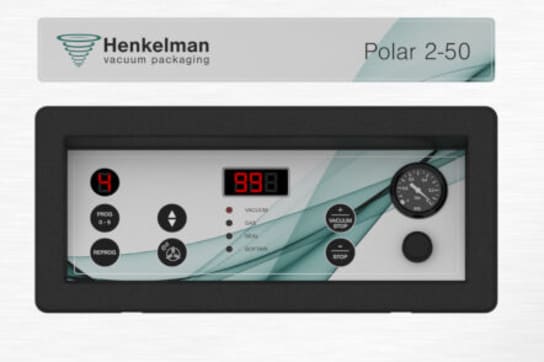

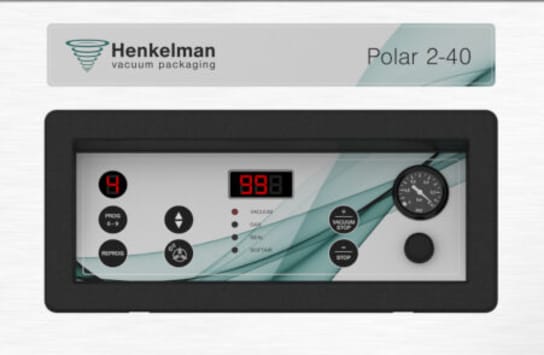

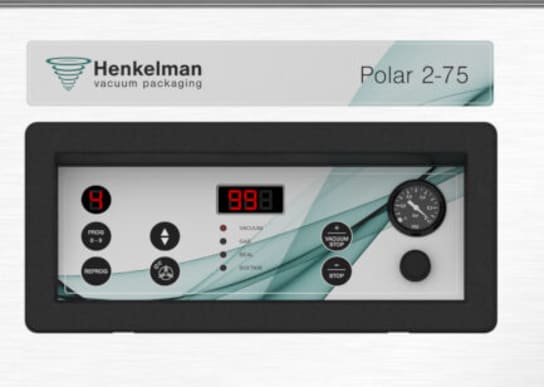

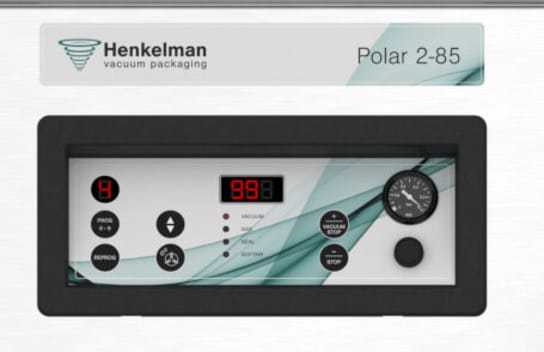

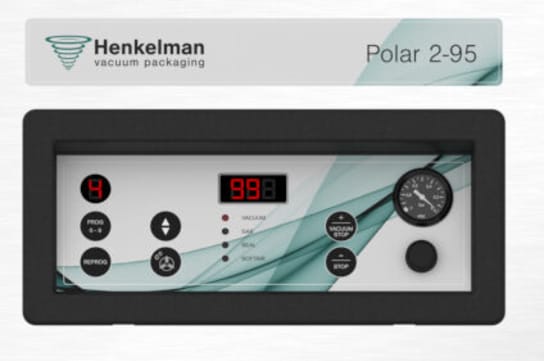

10 program memory
Offers the option to set and save up to 10 personalized vacuum programs.
Soft air
This enables the optimal vacuum packing of sharp or sensitive products without damaging the product or vacuum bag.
Closed stainless steel lid
Durable stainless steel material that can withstand long-term, industrial use.
Time control
Manually sets the vacuuming time
Red meat function
Short injections of air prevent the degassing of meat during the sealing phase. This ensures a longer shelf life and prevents air bubbles in the packaging.
Automatic Service Report
Automatic maintenance notification when the specified number of cycles has been reached. Standard on all Henkelman machines.
Fast and efficient
This double chamber floor-standing model makes the packaging of food and non-food products fast and efficient, as vacuuming and preparation can take place simultaneously.
Robust construction
The robust Polar double chamber is made entirely of durable stainless steel. The seamless joints between the chambers and the housing create a sturdy construction that is also easy to clean.
Flat work plates
The Polar’s standard flat work plates make the packaging of different products simple. The work plates are also easy to clean and to keep clean, partly due to the removeable silicon holder.
Extra options
Customize your Henkelman
Liquid Control
Stops the vacuuming process when evaporation is detected. This prevents contamination of the chamber, oxidation of the pump, and dehydration and loss of weight
Heavy duty model
Special version of the machine that can be operational for 20 hours per day.
High lid
Offers a useable chamber height of 300 mm instead of the standard 255 mm. Only available for Polar 2-85
External pump connection
Allows external installation of the pump in separate locations.
Sensor control
Detects the vacuum pressure and automatically stops the process when the preset vacuum percentage is reached
Advanced Control System (ACS)
Advanced full color operating system with 20 pre-programmed or user-configurable programs and extra functions for optimal user-friendliness.
Gas Flush / MAP packaging
Extends the shelf-life and protects vulnerable products from distortion and discoloration through the addition of preservative gas
1-2 Cut-off seal
Enables an independent time setting of the sealing wire and the cutting wire.
Inclined insert plate
Positions the vacuum bag at an angle. This makes it easier and more efficient to vacuum pack fluids and powders.
Thermal label printer
Ultra-compact thermal printer (HACCP proof) for labeling products. Only in combination with the Advanced Control System.
Maintenance kit (table model)
Contains all the necessary equipment for a maintenance service for Henkelman table models
Specifications
 Polar 2-40 |  Polar 2-50 |  Polar 2-75 |  Polar 2-85 |  Polar 2-95 | |||
|---|---|---|---|---|---|---|---|
| Chamber dimensions (mm) | 400x620x240 | 500x620x240 | 750x620x250 | 830x840x255 | 730x1100x280 | ||
| Machine dimensions (mm) | 820x1490x1345 | 920x1480x1325 | 1205x1485x1340 | 1295x1900x1450 | 1215x2420x1595 | ||
| Seal bar (mm) | 2x620 | 2x620 | 2x620 | 2x828 | 2x1090 | ||
| Pump capacity (m3/h) | 63 | 100 | 160 | 300 | 300 | ||
| Machine cycle (in sec) | 13-33 | 13-28 | 13-25 | 13-26 | 14-31 | ||
| Weight (kg) | 310 | 345 | 537 | 685 | 767 | ||
| Power (kWh) | 2,1-3,2 | 2,6-3,9 | 4,0-4,8 | 5,5-6,6 | 5,5-7,8 | ||
| Insert plates | 4 | 4 | 4 | 8 | 8 | ||
| Operating systems | 10 program memory, Advanced Control System | 10 program memory, Advanced Control System | 10 program memory, Advanced Control System | 10 program memory, Advanced Control System | 10 program memory, Advanced Control System | ||
| End vacuum detection | Timedriven | Timedriven | Timedriven | Timedriven | Timedriven | ||
| Fresh meat detection | Default | Default | Default | Default | Default | ||
| Soft air | Default | Default | Default | Default | Default | ||
| Liquid control | Optional | Optional | Optional | Optional | Optional | ||
| Gas flush | Optional | Optional | Optional | Optional | Optional | ||
| ACS function: Step vaccuum | Standard | Standard | Standard | Standard | Standard | ||
| ACS function: Fresh meat | Standard | Standard | Standard | Standard | Standard | ||
| ACS function: Marinate | Standard | Standard | Standard | Standard | Standard | ||
| ACS function: Tenderize | Standard | Standard | Standard | Standard | Standard | ||
| ACS function: Mason jars | Standard | Standard | Standard | Standard | Standard | ||
Frequently asked questions
What is the maximum weight that can be vacuum packed with a Polar 2-95 vacuum packing machine?
Can I move the vacuum packing machine with a forklift?
Can I maintain a Polar myself?
Can I set-up the Polar myself?
How does a double chamber vacuum packing machine work?
Is the Polar double chamber vacuum packing machine suitable for industrial use?
Related products
Featured products

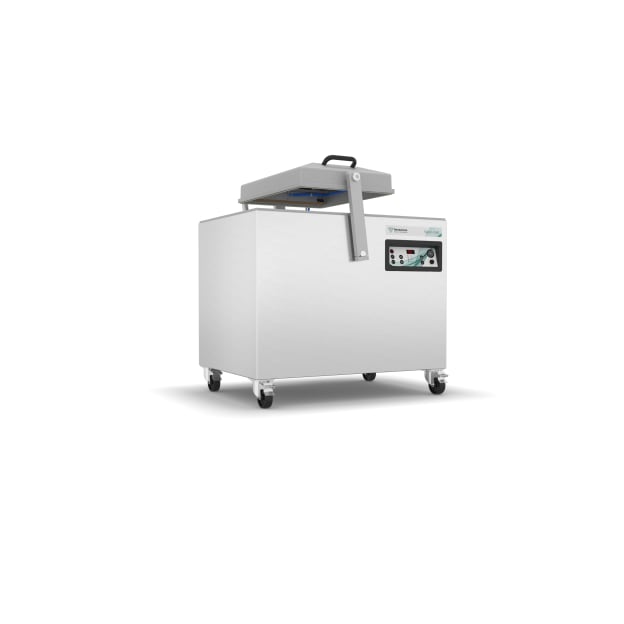

Falcon Double Chamber Series
